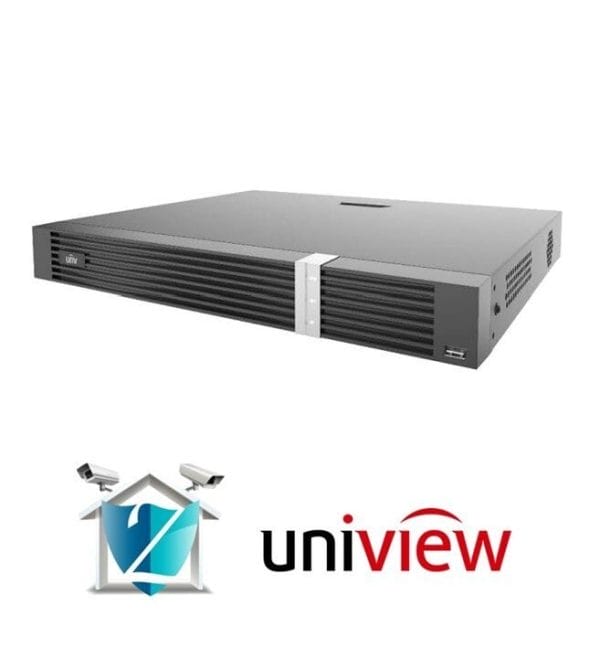

NVR Uniview NVR302-16E2-IQ
NVR Uniview NVR302-16E2-IQ السعر الأصلي هو: $18,000.00.السعر الحالي هو: $13,500.00.

Cable Uniview CAB-LC3100A-E-IN

Apple Shopping Event

Hurry and get discounts up to 20% Read more

Cable Uniview CAB-LC3100A-E-IN

مواصفات السلك:

  • رقم الموديل: CAB-LC3100A-E-IN
  • مواصفات الكابل: HSYV-6 4×2×0.52
  • المعيار الاختباري: ISO/IEC11801، TIA-568-C.2

الخصائص الفنية:

  • الموصل:
    • المادة: نحاس خالي من الأوكسجين (OFC)
    • AWG: 24
    • القطر الاسمي: 0.52±0.03 مم
    • مقاومة التيار المستمر: ≤95 Ω/km
  • العزل:
    • المادة: HDPE
    • السماكة: 0.2±0.02 مم
    • القطر: 0.93±0.05 مم
    • اللون: أزرق/أبيض-أزرق، أخضر/أبيض-أخضر، برتقالي/أبيض-برتقالي، بني/أبيض-بني
    • الفجوة بين الأسلاك: ≤20 مم
    • المسافة بين الكابلات: ≤120 مم
  • الغطاء الخارجي:
    • المادة: PVC (يتوافق مع RoHS/REACH)
    • القطر الخارجي: 5.8±0.3 مم
    • اللون: برتقالي
    • مقاومة الشد: >13.5 ميجا باسكال
    • السماكة: 0.6±0.05 مم
  • الطباعة على السطح:
    • ارتفاع الحروف: 3.0±0.3 مم
    • اللون: أسود
    • خطأ الطباعة والمسافة: 1±0.005 م
    • رقم الحالة: موجود

التعبئة والتغليف:

  • التعبئة:
    • التعبئة: كرتون
    • أبعاد التعبئة الأولية: 420 مم × 205 مم × 420 مم
    • أبعاد التعبئة الثانوية: 450 مم × 440 مم × 445 مم
    • كمية التعبئة الثانوية: 2 صناديق
    • طول التعبئة: 305±1 م
  • مميزات أخرى:
    • يوجد سلك تمزيق (Rip-cord)
    • يوجد عمود تقاطع (Crossing backbone)

درجات الحرارة:

  • درجة الحرارة المحيطية: من -20℃ إلى 60℃

السعر الأصلي هو: $13,750.00.السعر الحالي هو: $7,250.00.

Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product details

Made possible by exploring innovative molded plywood techniques, Iskos-Berlin’s Soft Edge Chair blends strong curves with extreme lightness to create a three-dimensionality not usually possible with 2-D plywood.

Description

Cable Uniview CAB-LC3100A-E-IN

Product Specifications:

  • Model Number: CAB-LC3100A-E-IN
  • Cable Specification: HSYV-6 4×2×0.52
  • Test Standards: ISO/IEC11801, TIA-568-C.2

Technical Properties:

  • Conductor:
    • Material: Oxygen-Free Copper (OFC)
    • AWG: 24
    • Nominal Diameter: 0.52±0.03 mm
    • DC Resistance: ≤95 Ω/km
  • Insulation:
    • Material: HDPE
    • Thickness: 0.2±0.02 mm
    • Diameter: 0.93±0.05 mm
    • Colors: Blue/White-Blue, Green/White-Green, Orange/White-Orange, Brown/White-Brown
    • Pair Gap: ≤20 mm
    • Cable Pitch: ≤120 mm
  • Sheath:
    • Material: PVC (compliant with RoHS/REACH)
    • Outer Diameter: 5.8±0.3 mm
    • Color: Orange
    • Tensile Strength: >13.5 MPa
    • Thickness: 0.6±0.05 mm
  • Surface Printing:
    • Letter Height: 3.0±0.3 mm
    • Color: Black
    • Print Error & Space: 1±0.005 m
    • Case Number: Present

Packaging:

  • Packaging:
    • Packaging: Carton
    • Primary Packing Dimensions: 420 mm × 205 mm × 420 mm
    • Secondary Packing Dimensions: 450 mm × 440 mm × 445 mm
    • Secondary Packing Quantity: 2 cases
    • Packing Length: 305±1 m
  • Additional Features:
    • Rip-cord: Yes
    • Crossing Backbone: Yes

Ambient Temperature:

  • Operating Temperature: -20℃ to 60℃
